2013 Hot Sell Charcoal Making Machine

GCBC Series briquette making machine is a kind of high-end briquetting equipment. It is improved in both appearance design and structure design based on 6 years of research and manufacturing experience. Do not need to change Inner Former until input capacity exceed 1000 tons.

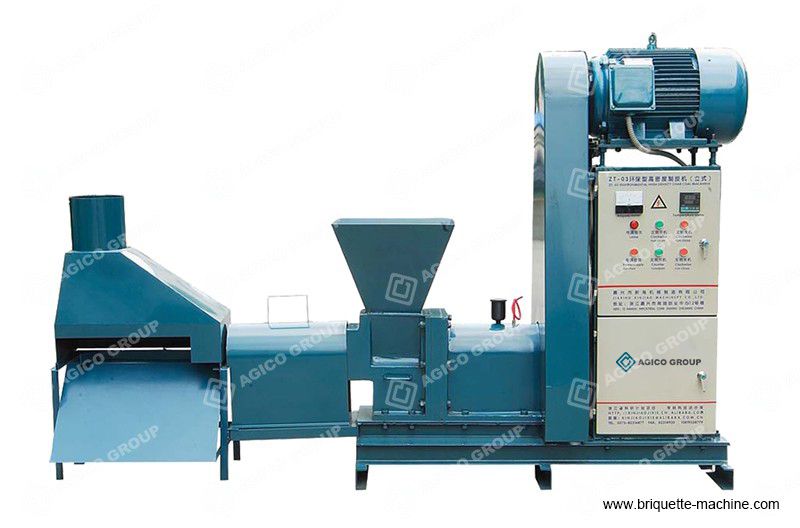

Biomass Fuel Briquette Making Machine for Sale

Model	GCBC- I
Output capacity kg/h	180-210
Motor Power (kw)	15
Electric heater (kw)	2.2kw*2
Life of the inner former	1-2years

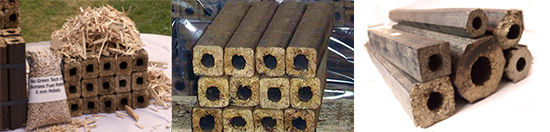

Size of briquettes	Dia.50mm*L.480mm
Size of inside hole	Dia.16mm
Density of briquettes	1.3 g/cm3
Weight(kg)	700kg
Overall dimension(mm)	2700*600*1600 mm

Working Principle Carbonization:

The carbonization furnace adopts the high-temperature dry sliding carbonization technology to make the man-made briquette to charcoal briquette. It is equipped with hyperploid high temperature stream cooling system, and the process of cooling can be accelerated to speed up the period of the production. Moreover, the stove adopts the structure of unique air storage chamber to fully reuse the smoke produced during the process of carbonization. And 60% of the redundant smoke can be used in drying and carbonizing, saving much fuel during the whole process,and increasing the enterprise revenue.

Characteristics of Carbonization Furnace:

1. This furnace is ideal equipment for charring wood briquettes into charcoal briquette. The wood briquette will have anoxic distillation charring in the furnace.
2. Due to its rational structure, the furnace only needs small heat consumption.
3. It adopted Superheated Stream cooling system, thus can speed up the cooling process, improve the quality of charcoal, and shorten the charring period.
4. Its horizontal condenser can retrieve much wood tar.
5. Carbonization time is1days.
6. The furnace use 6mm steel plate.

AGICO GROUP - reliable charcoal making machine supplier in China, offer you high quality briquette machines, affordable price and best after-service!
